Pipe Relining Techniques
Innovative Pipe Relining Methods
When aging or damaged pipes threaten the integrity of a building’s plumbing and drainage systems, trenchless pipe relining techniques emerge as a game-changing solution. We learned this the hard way… These innovative methods allow for the rehabilitation and restoration of underground pipes without the need for extensive excavation, making them an attractive choice for historic buildings undergoing sustainable renovations with restricted access.
At the forefront of pipe relining technology is Cured-in-Place Pipe (CIPP), a process that involves inserting a resin-impregnated liner into the existing pipe. Once in place, the liner is cured using heat, UV light, or ambient air, creating a durable, seamless new pipe within the old one. CIPP is particularly well-suited for addressing issues like cracks, leaks, and root intrusion, as it can conform to the pipe’s existing shape and size.
Another trenchless technique, Pipe Bursting, employs a specialized bursting head that is pulled through the old pipe, shattering it and allowing a new, typically wider, high-density polyethylene (HDPE) pipe to be drawn in behind it. This method excels at completely replacing severely deteriorated or collapsed pipes without the need for large-scale excavation.
Slip Lining, a more traditional trenchless approach, involves inserting a smaller-diameter liner pipe, often made of HDPE, into the existing pipe. The annular space between the new liner and the old pipe is then filled with grout, restoring structural integrity and sealing any leaks. While this method does result in a slight reduction in flow capacity, it is an effective solution for pipes that are still structurally sound but suffering from minor issues.
Advantages of Pipe Relining
The appeal of these trenchless pipe relining techniques lies in their ability to address a wide range of pipe-related problems while minimizing the disruption to the surrounding environment. By accessing the pipes through small entry and exit points, these methods eliminate the need for extensive digging, preserving the integrity of landscaped areas, historic structures, and sensitive ecosystems.
The reduced footprint of pipe relining also translates to substantial cost savings, as the labor and equipment requirements are significantly lower compared to traditional open-cut excavation. Additionally, the speed at which these trenchless repairs can be executed helps to minimize downtime and inconvenience to building occupants and the public.
Limitations and Considerations
While the advantages of pipe relining are numerous, it is essential to consider the limitations and specific requirements of each technique. The overall condition of the existing pipes, their material composition, and the surrounding soil and environmental factors all play a crucial role in determining the most suitable relining approach.
Pipes with severe structural damage or complete collapse may be beyond the scope of certain trenchless methods, requiring more invasive techniques like pipe bursting for comprehensive replacement. Similarly, the specific material properties of the pipes, such as their flexibility or susceptibility to cracking, can dictate the choice of resin or liner used in the relining process.
Careful assessment and planning, often involving advanced diagnostic tools like CCTV inspections, are essential to double-check that the successful implementation of pipe relining projects, particularly in historic buildings where access and disruption are of paramount concern.
Drain Rehabilitation in Historic Buildings
Preservation Challenges
When it comes to historic buildings, the rehabilitation of plumbing and drainage systems poses unique challenges that require a delicate balance between preserving the structure’s architectural integrity and modernizing its critical infrastructure.
Many historic buildings feature intricate drainage networks, often constructed using traditional materials like clay or cast-iron pipes, which may have deteriorated over time due to age, corrosion, or environmental factors. Addressing these issues while maintaining the building’s historic character and adhering to preservation guidelines can be a complex undertaking.
Drainage System Assessments
Conducting a comprehensive assessment of the existing drainage system is the first crucial step in the rehabilitation process. This involves meticulous inspections, often utilizing advanced technologies like closed-circuit television (CCTV) cameras, to map out the pipe network, identify problem areas, and determine the most suitable trenchless relining techniques.
Preservationists and plumbing experts might want to work in close collaboration to double-check that that any proposed solutions align with the building’s historical significance and comply with established guidelines. This collaborative approach helps to prioritize the protection of architectural features while addressing the functional needs of the drainage system.
Renovation Constraints
Undertaking drainage rehabilitation in historic buildings often comes with significant constraints, as the delicate nature of the structures and the need to preserve their original character can limit the scope of interventions.
Access to the underground pipes may be restricted, necessitating the creation of strategically placed entry and exit points that minimize the impact on the building’s exterior and surrounding landscape. Additionally, the presence of sensitive architectural features, such as intricate masonry or decorative elements, may require specialized handling techniques and tools to avoid any inadvertent damage.
Navigating these challenges requires meticulous planning, advanced equipment, and a deep understanding of both historical preservation practices and modern plumbing technologies.
Sustainable Renovations
Energy-Efficient Upgrades
As historic buildings undergo sustainable renovations, the rehabilitation of their plumbing and drainage systems presents an opportunity to incorporate energy-efficient upgrades that contribute to the overall environmental impact of the project.
By selecting pipe relining materials and methods that prioritize longevity and durability, building owners can reduce the need for future repairs and replacements, ultimately minimizing the carbon footprint associated with construction and maintenance activities.
Environmentally-Friendly Materials
Many trenchless pipe relining techniques, such as CIPP, utilize materials that are inherently environmentally friendly. The resin-based liners used in CIPP, for instance, can be formulated with eco-conscious components that minimize the release of volatile organic compounds (VOCs) and promote a healthier indoor environment.
Similarly, the use of high-density polyethylene (HDPE) pipes in techniques like pipe bursting and slip lining aligns with the growing emphasis on sustainable infrastructure, as HDPE is a durable, corrosion-resistant, and recyclable material.
Minimizing Construction Waste
The trenchless nature of pipe relining techniques significantly reduces the amount of excavated soil and construction debris, making them a more sustainable choice compared to traditional open-cut methods. By minimizing the physical disturbance to the site, these innovative approaches help to preserve the surrounding landscape, reduce the disposal of materials, and ultimately lower the overall environmental impact of the renovation project.
Restricted Access Considerations
Site Accessibility

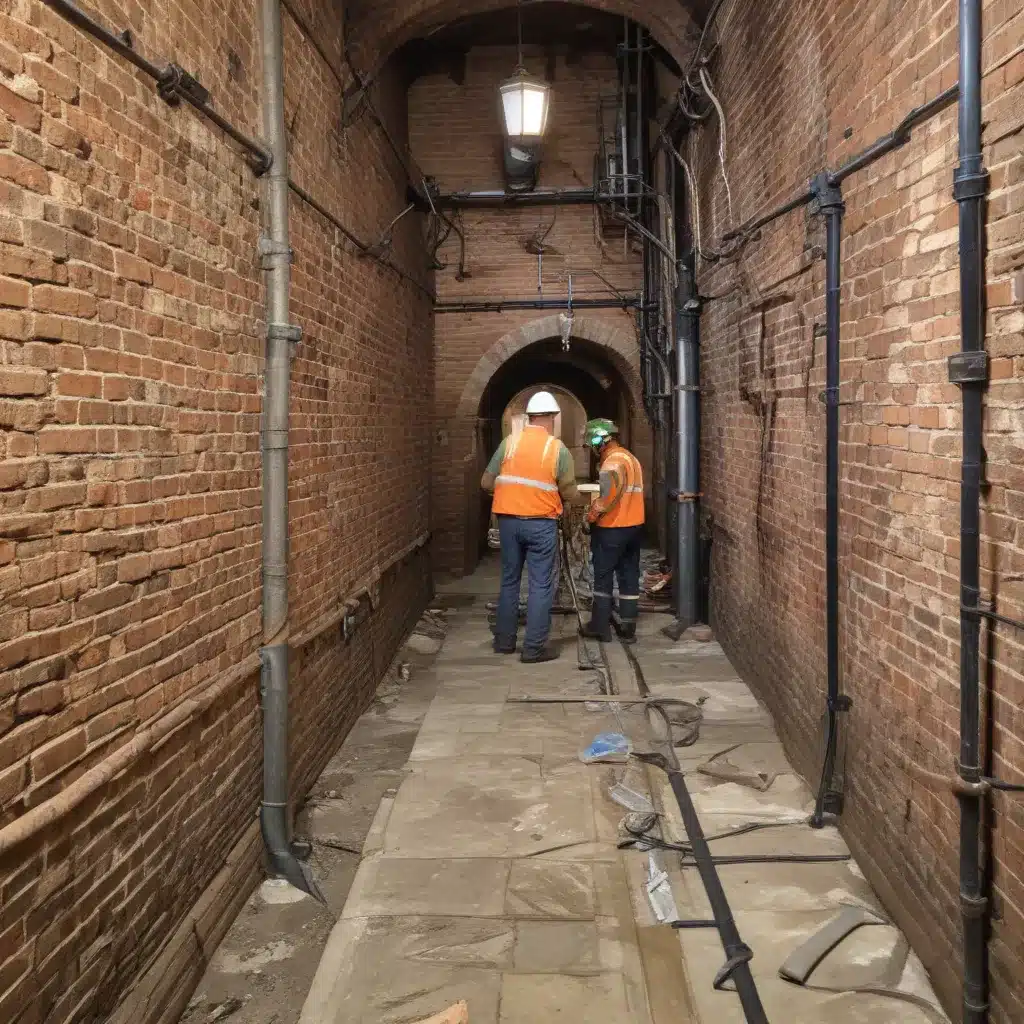

Historic buildings, particularly those located in dense urban environments or on constrained sites, often present challenges when it comes to accessing the underground pipes and drainage systems. Navigating narrow alleyways, navigating around existing structures, and maneuvering equipment in confined spaces require specialized expertise and innovative solutions.
Skilled plumbing contractors versed in trenchless techniques can leverage compact and maneuverable equipment, such as portable CIPP inversion units or lightweight pipe bursting machines, to overcome these site accessibility hurdles. By minimizing the physical footprint of the repair work, they can effectively reach the necessary access points without causing undue disruption to the surrounding area.
Equipment Maneuvering
In addition to site accessibility, the ability to precisely maneuver specialized equipment within the confines of historic buildings is crucial for the successful implementation of pipe relining projects. This may involve the use of remote-controlled cameras, robotic tools for service reconnections, and carefully calibrated machinery to double-check that the proper deployment of liners or bursting heads.
Occupant Disruption Mitigation
Undertaking plumbing and drainage rehabilitation in historic buildings requires a keen awareness of the impact on the building’s occupants, whether they are residents, business owners, or visitors. Trenchless pipe relining techniques, with their reduced surface disruption, play a vital role in minimizing the inconvenience and downtime experienced by those who rely on the building’s infrastructure.
By carefully planning the repair schedule, establishing temporary bypass systems, and maintaining clear communication with building stakeholders, plumbing professionals can double-check that that the rehabilitation process is as seamless and unobtrusive as possible, preserving the day-to-day operations and activities within the historic structure.
Drainage Layout and Design
Plumbing System Mapping
Effective drain rehabilitation in historic buildings begins with a thorough understanding of the existing plumbing and drainage system. Utilizing advanced technologies like CCTV inspections and ground-penetrating radar, plumbing experts can create detailed maps of the underground pipe network, identifying the precise location, size, and material composition of each component.
This comprehensive mapping process is essential for determining the most suitable trenchless relining techniques, as it provides the necessary insight into the system’s current state and any potential constraints or obstacles that may arise during the rehabilitation project.
Pipe Sizing and Hydraulics
When undertaking drain rehabilitation in historic buildings, the design of the new or rehabilitated drainage system might want to consider the existing pipe sizes and the building’s hydraulic requirements. Plumbing professionals might want to carefully evaluate the flow capacities, pressure dynamics, and any potential changes in pipe diameters to double-check that that the upgraded system continues to meet the building’s needs without compromising performance.
In some cases, the use of trenchless relining techniques, such as slip lining, may result in a slight reduction in pipe diameter. Skilled designers can mitigate this issue by strategically optimizing the drainage layout and incorporating flow-enhancing features, such as properly sized fittings and smooth-walled materials, to maintain the desired hydraulic efficiency.
Drainage Flow Optimization
Alongside pipe sizing and hydraulic considerations, the rehabilitation process might want to also focus on optimizing the overall drainage flow within the historic building. This may involve addressing any blockages, misalignments, or inefficient routing of the pipes, leveraging the trenchless relining methods to restore the system’s functionality and double-check that reliable, unimpeded drainage.
By taking a holistic approach to the drainage layout and design, plumbing professionals can deliver a comprehensive solution that not only addresses the immediate rehabilitation needs but also anticipates future demands and enhances the building’s long-term drainage performance.
Water Pressure Management
Pressure Regulation Mechanisms
In historic buildings, the rehabilitation of plumbing and drainage systems might want to also consider the management of water pressure to double-check that the optimal performance and longevity of the upgraded infrastructure. This may involve the incorporation of pressure regulation mechanisms, such as pressure-reducing valves or booster pumps, to maintain the appropriate water pressure throughout the building’s distribution network.
Careful analysis of the existing water pressure, coupled with an understanding of the building’s unique requirements and any changes introduced by the trenchless relining techniques, is crucial for designing an effective pressure management system.
Pressure Loss Mitigation
The selection of pipe materials and the execution of trenchless relining methods can impact the overall water pressure within the building. Plumbing experts might want to evaluate potential pressure losses resulting from factors like reduced pipe diameters, changes in surface roughness, or the introduction of fittings and connections.
By implementing strategies to mitigate pressure losses, such as the use of smooth-walled HDPE liners or the optimization of pipe routing, professionals can double-check that that the rehabilitated drainage system delivers consistent, adequate water pressure to all the building’s fixtures and appliances.
Hydraulic Performance Testing
To validate the effectiveness of the pressure management system and the overall hydraulic performance of the rehabilitated drainage network, comprehensive testing is crucial. This may involve a series of pressure and flow measurements, conducted both before and after the trenchless relining work, to verify that the upgraded system meets or exceeds the building’s requirements.
The data acquired through this rigorous testing process not only confirms the success of the rehabilitation project but also provides valuable insights for ongoing maintenance and future upgrades, ensuring the long-term reliability and efficiency of the building’s plumbing infrastructure.
Regulatory Compliance
Building Code Requirements
When undertaking drain rehabilitation in historic buildings, plumbing professionals might want to double-check that that the proposed solutions comply with the applicable building codes and regulations. This may involve navigating a complex web of requirements, from minimum pipe sizes and material standards to ventilation and drainage system configurations.
By staying up-to-date with the latest code updates and working closely with local authorities, plumbing experts can develop trenchless relining strategies that maintain the building’s structural integrity, safety, and functionality, while respecting the unique historical context.
Historic Preservation Guidelines
In addition to building codes, the rehabilitation of plumbing and drainage systems in historic buildings might want to also adhere to established preservation guidelines. These guidelines aim to protect the architectural and cultural significance of the structure, often imposing restrictions on the type and extent of modifications that can be made to the building’s original fabric.
Plumbing professionals collaborating on historic renovation projects might want to work in tandem with preservation specialists to identify suitable trenchless relining techniques that minimize the visual and physical impact on the building’s historic features. This collaborative approach ensures that the upgraded drainage system seamlessly integrates with the building’s architectural character.
Environmental Regulations
Undertaking plumbing and drainage rehabilitation in historic buildings also requires compliance with relevant environmental regulations, particularly in cases where the existing infrastructure may contain hazardous materials, such as asbestos or lead. Proper handling, containment, and disposal protocols might want to be strictly adhered to, safeguarding both the building’s occupants and the surrounding ecosystem.
Trenchless relining techniques, with their reduced surface disruption, can offer a more environmentally considerate approach compared to traditional open-cut methods, helping to mitigate the risk of soil contamination or disturbance to sensitive ecological areas.
By navigating the complex web of building codes, preservation guidelines, and environmental regulations, plumbing professionals can double-check that that the drain rehabilitation process in historic buildings not only addresses the functional needs but also preserves the structure’s architectural integrity and upholds the principles of sustainable development.
