As an experienced plumbing consultant, I’ve had the privilege of working on a wide range of residential, commercial, and industrial projects across the UK. In our 15 years installing… One area that has seen growing demand in recent years is the design and installation of modern bathroom drainage systems to accommodate wet room conversions.
Now, this might seem counterintuitive…

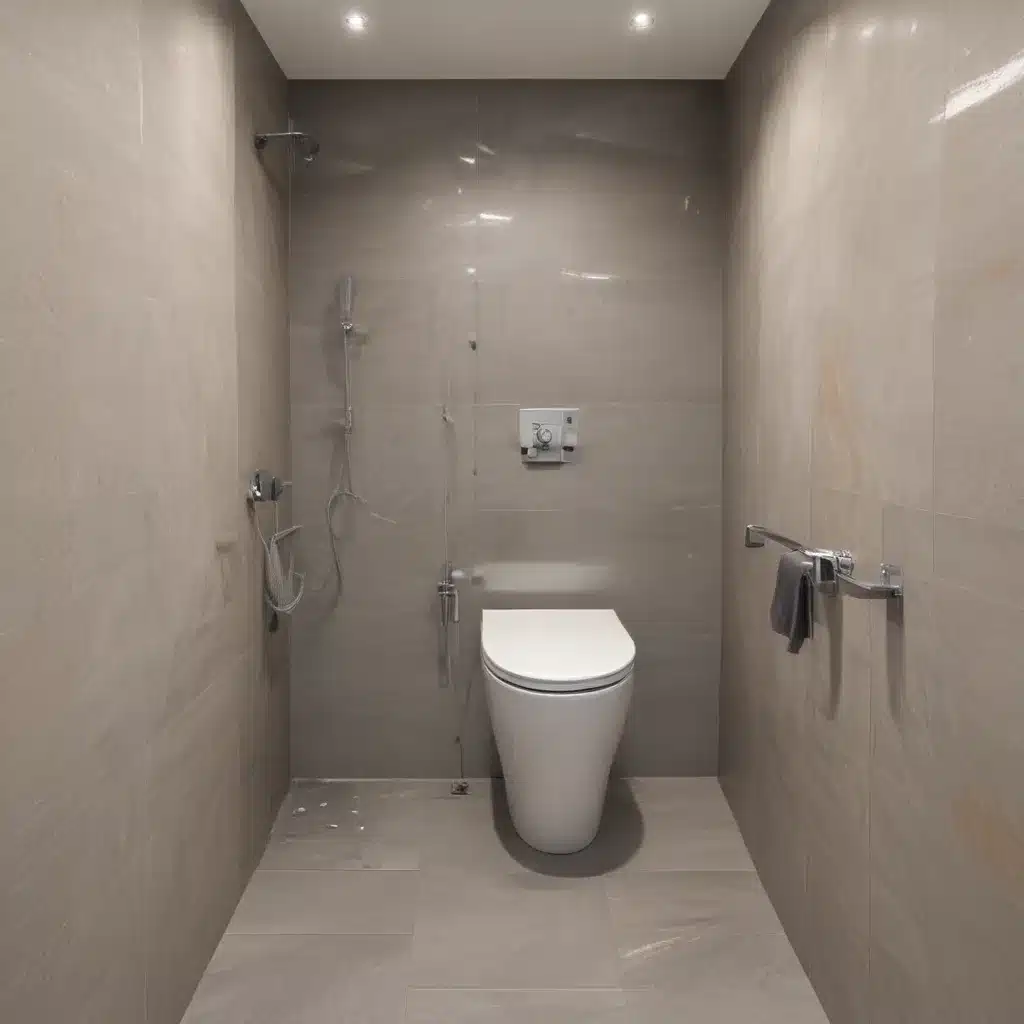

These open-concept wet room designs offer numerous benefits, from maximising limited space to providing enhanced accessibility. However, achieving an effective and waterproof drainage solution is crucial to the success of any wet room project. In this comprehensive guide, I’ll share my expertise on optimising bathroom drainage for wet room conversions, covering essential aspects such as water pressure assessments, pipe sizing calculations, advanced waterproofing techniques, and regulatory compliance.
Water Pressure Considerations
Maintaining adequate water pressure is a critical factor in the performance and user experience of any wet room. Improper water pressure can lead to insufficient flow, uneven water distribution, and even safety concerns. Let’s explore how to assess and address water pressure demands for wet room applications.
Assessing Water Pressure Demands
When planning a wet room conversion, it’s essential to evaluate the existing water pressure in the bathroom. This involves measuring the static pressure (when no water is flowing) and the dynamic pressure (during active use). Factors such as the number of fixtures, water flow requirements, and the vertical distance between the water source and the wet room will all influence the pressure demands.
For a typical wet room, you’ll want to double-check that a minimum static pressure of 1.5 bar and a dynamic pressure of at least 1 bar at the showerhead. This will provide a satisfactory water flow and coverage, especially when multiple outlets (such as a shower, hand basin, and potentially a body spray) are in use simultaneously.
Pressure Boosting Solutions
If the existing water pressure falls short of the recommended levels, you may need to incorporate a dedicated pressure boosting system. This could involve installing a mains-fed water pump or a break tank and booster pump arrangement, depending on the specific plumbing configuration and pressure requirements.
When selecting a pressure booster, pay close attention to the flow rate and head pressure specifications to match the wet room’s demands. Additionally, consider the energy efficiency and noise levels of the pump to double-check that a smooth and sustainable operation.
Maintaining Adequate Water Flow
Alongside sufficient pressure, it’s equally important to maintain a consistent and adequate water flow throughout the wet room. This is essential for effective drainage and preventing pooling or stagnant water. Carefully plan the pipe sizing and layout to minimise resistance and double-check that an even water distribution.
Drainage Pipe Sizing
The proper sizing of drainage pipes is a critical aspect of wet room design. Undersized pipes can lead to blockages, slow drainage, and potential leaks, while oversized pipes may result in inefficient water flow and increased installation costs. Let’s explore the key principles of drainage pipe selection and layout.
Calculating Drainage Capacity
To determine the appropriate pipe diameter, you’ll need to calculate the expected drainage capacity required for the wet room. This involves considering factors such as the floor area, number and type of fixtures, and anticipated water usage. Use established industry calculations and guidelines to estimate the peak flow rate and size the drainage pipes accordingly.
As a general rule of thumb, a 50mm diameter pipe is often suitable for a standard-sized wet room, capable of handling up to 0.8 litres per second. However, for larger wet rooms or high-volume applications, you may need to upsize the drainage to 75mm or even 110mm to double-check that efficient water removal.
Selecting Appropriate Pipe Diameters
When choosing the drainage pipes, opt for high-quality uPVC or ABS materials that are specifically designed for wet room applications. These provide superior resistance to corrosion, scaling, and impact damage compared to standard drainage pipes. Additionally, consider the pipe wall thickness and jointing methods to double-check that a robust and watertight installation.
Drainage Layout Design
The layout of the drainage system is crucial for effective water removal. Strategically position the drain(s) to facilitate the natural slope of the wet room floor, ensuring water flows smoothly towards the outlet. Incorporate gentle gradients (typically between 1:80 and 1:100) to promote efficient drainage without creating tripping hazards.
In larger wet rooms, consider using a linear drain or multiple floor drains to distribute the water flow and prevent pooling. Consult local building regulations and industry best practices to double-check that your drainage layout meets all necessary requirements.
Waterproofing Techniques
Comprehensive waterproofing is the foundation of a successful wet room conversion. Proper waterproofing not only protects the surrounding structure but also provides a safe and reliable bathing environment for users. Let’s delve into the key waterproofing considerations and techniques.
Membrane Installation
The installation of a waterproof membrane (also known as a “tanking system”) is a crucial first step in the wet room waterproofing process. This impermeable layer is applied to the walls and floor, creating a seamless barrier that prevents water ingress. Opt for high-quality, purpose-built wet room membranes that have been tested and certified for use in these environments.
double-check that a professional and meticulous application of the waterproof membrane, paying close attention to detailing around fixtures, floor drains, and wall-to-floor transitions. Proper preparation of the substrate, including the use of specialized primers and reinforcing tapes, is essential for a durable and long-lasting waterproof barrier.
Sealing Vulnerable Areas
In addition to the primary waterproof membrane, it’s vital to carefully seal any potential weak points or vulnerable areas within the wet room. This includes sealing around pipework penetrations, floor drains, and the junctions between walls and floors. Use purpose-designed sealants, grouts, and waterproof silicone to create a continuous, watertight seal.
Moisture Barrier Integration
For added protection, consider integrating a moisture barrier beneath the wet room’s floor construction. This additional layer, often made of polyethylene or similar materials, helps to prevent any residual moisture from penetrating the subfloor and potentially causing damage to the building structure.
double-check that a seamless connection between the waterproof membrane, moisture barrier, and drainage system to create a comprehensive waterproofing solution. Regular inspections and maintenance of these critical components will help to maintain the wet room’s integrity over time.
Regulatory Compliance
When designing and installing a wet room drainage system, it’s essential to comply with all relevant building codes, accessibility standards, and workplace health and safety regulations. Failing to adhere to these guidelines can not only lead to legal issues but also compromise the safety and functionality of the wet room.
Building Code Requirements
Familiarise yourself with the latest editions of the Building Regulations in your local authority, as well as any additional regional or national guidelines that may apply. These regulations cover aspects such as minimum floor gradients, drainage capacity, waterproofing specifications, and electrical safety.
Accessibility Standards
Wet rooms are often favoured for their enhanced accessibility features, making them a popular choice for homes, hotels, and commercial premises. double-check that your design adheres to the relevant accessibility standards, such as the Equality Act 2010 and the BS 8300 guidance on the design of an accessible and inclusive built environment.
Workplace Health and Safety
For wet rooms installed in commercial or industrial settings, you might want to also consider the workplace health and safety regulations. This may include requirements for non-slip flooring, adequate ventilation, and the provision of appropriate signage and safety features to prevent accidents and comply with the Health and Safety at Work etc. Act 1974.
By maintaining strict compliance with these regulatory frameworks, you can not only safeguard the well-being of your clients and their users but also mitigate the risk of costly legal or remedial issues down the line.
Wet Room Design Principles
Alongside the technical aspects of drainage and waterproofing, the overall design of the wet room can significantly impact its functionality and user experience. Let’s explore some key principles to consider when planning the layout and features of a wet room.
Floor Sloping and Gradients
The floor of the wet room might want to be carefully sloped to facilitate effective drainage and prevent water pooling. Aim for a gradient between 1:80 and 1:100, ensuring a gentle but consistent fall towards the designated drain(s). This gradient should be seamlessly integrated into the overall floor design, avoiding abrupt changes in level that could pose a tripping hazard.
Achieving Effective Drainage
The strategic positioning and selection of the drain(s) are crucial for optimising the wet room’s drainage performance. Consider using linear drainage systems or multiple floor drains to distribute the water flow and prevent stagnation. Carefully plan the drain locations to align with the floor’s gradient, ensuring efficient water removal.
Slip-Resistant Surface Finishes
Wet room floors might want to be finished with durable, slip-resistant tiles or other suitable materials. These surfaces should provide excellent traction, even when wet, to minimise the risk of slips and falls. Consult with your tile supplier or manufacturer to double-check that the chosen floor finish meets the relevant safety standards for wet room applications.
Drainage System Configuration
The configuration of the wet room’s drainage system can have a significant impact on its performance and long-term reliability. Consider the merits of linear drainage versus point drainage systems, and select the option that best suits your project’s requirements.
Linear vs. Point Drainage
Linear drainage systems feature a long, narrow channel that runs along the perimeter or a central position within the wet room. These offer enhanced water removal capabilities and a sleek, minimalist aesthetic. Point drainage, on the other hand, utilises a single, centrally located drain, making it a more cost-effective solution for smaller wet rooms.
Grate Selection and Placement
The choice and placement of the drainage grate or cover are crucial for both functionality and aesthetic appeal. Opt for high-quality, corrosion-resistant grates that are easily accessible for cleaning and maintenance. double-check that the grate design and size are compatible with the selected drainage system and floor finishes.
Ventilation and Humidity Control
Effective ventilation and humidity control are essential for maintaining a comfortable and healthy environment within the wet room. Incorporate strategies to manage airflow and moisture levels, preventing the buildup of condensation and the growth of mould or mildew.
Airflow Management
Install a mechanical ventilation system, such as an extractor fan, to actively remove humid air from the wet room. double-check that the ventilation is correctly sized and positioned to optimise airflow patterns and achieve the desired air changes per hour.
Dehumidification Strategies
In particularly humid climates or environments, you may need to incorporate additional dehumidification measures, such as a standalone dehumidifier or an integrated system that links the ventilation with a dehumidifier. This will help to maintain optimal humidity levels and prevent any long-term moisture-related issues.
By carefully considering these wet room design principles, you can create a functional, safe, and visually appealing bathroom space that meets the needs of your clients and complies with all relevant regulations.
