As an experienced plumbing consultant for Plumbing Drains North Wales, I’ve had the privilege of working on a wide range of drainage and water management projects across the UK. In our 15 years installing… One of the key focus areas in recent years has been the integration of sustainable drainage systems (SuDS) into both residential and commercial landscaping designs.
Surface Water Drainage
Effective surface water drainage is essential for preventing localized flooding, managing water quality, and ensuring the long-term integrity of a property’s structural foundations. While traditional underground pipe networks can effectively move water away from a site, they often fail to address the root causes of excess runoff and can contribute to wider drainage issues within a community.
Water Pressure Considerations
One of the first factors to consider when designing a surface water drainage system is the available water pressure. This will determine the optimal pipe sizing and layout to double-check that efficient water flow and prevent backups or pooling. As outlined on the Hackney Council website, developers should aim to achieve greenfield runoff rates wherever possible, meaning that the post-development discharge matches the natural, pre-development levels.
Pipe Sizing Optimization
Properly sizing drainage pipes is crucial for managing both normal and extreme weather events. Using oversized pipes can lead to slower flow velocities and sediment buildup, while undersized pipes risk becoming overwhelmed and causing localized flooding. By carefully analyzing the site’s watershed, ground permeability, and predicted rainfall patterns, we can determine the ideal pipe diameters and gradients to optimize the system’s performance.
Drainage System Layout

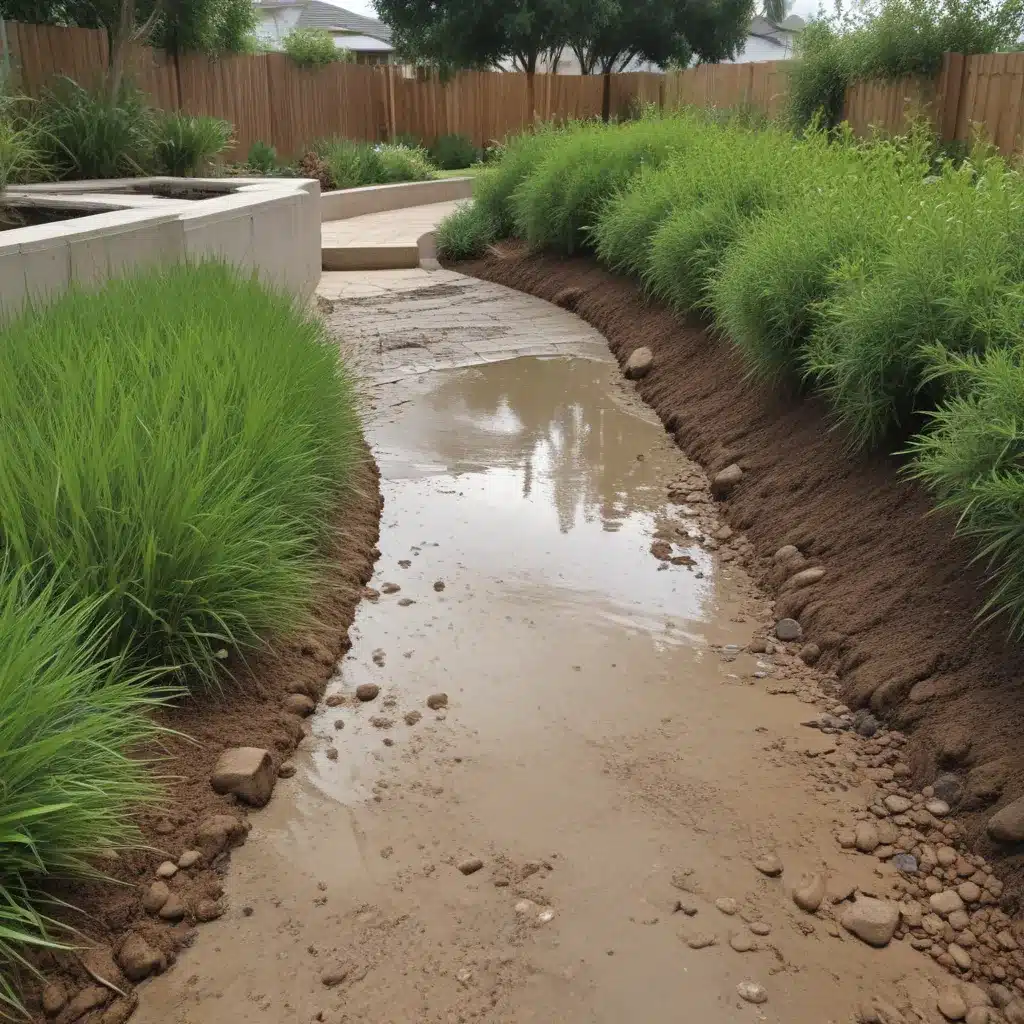

The spatial arrangement of a surface water drainage network plays a significant role in its overall effectiveness. The London Sustainable Drainage Action Plan emphasizes the importance of managing runoff “as close to its source as possible” by incorporating SuDS features throughout the landscape. This could involve strategically placed swales, filter strips, or detention basins to slow the flow of water and allow for natural infiltration and treatment.
Stormwater Attenuation Strategies
Beyond just moving water away from a site, modern drainage design focuses on stormwater attenuation – the process of slowing and storing runoff to mitigate the risk of flooding and reduce the burden on municipal sewer systems. This approach not only enhances localized water management but also provides valuable environmental and aesthetic benefits.
Detention Basin Design
One of the most effective SuDS features for stormwater attenuation is the detention basin – a shallow, vegetated depression that temporarily stores excess runoff during heavy rain events. By carefully calculating the required storage volume based on the site’s impervious area and rainfall patterns, we can design detention basins that slowly release water over an extended period, allowing it to gradually infiltrate into the ground.
Permeable Surface Materials
Replacing traditional impermeable surfaces like concrete and asphalt with permeable paving, gravel, or vegetated areas can dramatically reduce surface water runoff. As highlighted by The Flood Hub, these permeable materials allow rainwater to infiltrate the soil rather than rushing into drains, reducing the risk of flooding and improving groundwater recharge.
Regulatory Compliance
When specifying sustainable drainage systems, it’s important to double-check that compliance with the latest regulations and planning requirements. In the UK, the Lead Local Flood Authority (LLFA) acts as the statutory consultee on surface water drainage for major developments, and developers might want to submit a detailed Sustainable Drainage Strategy as part of the planning application process.
Soil Characteristics for Drainage
The underlying soil conditions of a site play a crucial role in determining the most appropriate drainage solutions. By thoroughly assessing the soil’s permeability, slope, and organic matter content, we can design a landscape that effectively manages surface water runoff while supporting healthy plant growth.
Soil Permeability Analysis
Measuring a soil’s infiltration rate and percolation capacity is essential for determining its suitability for infiltration-based SuDS features, such as soakaways, permeable paving, and bioretention systems. Sites with highly permeable, well-drained soils are ideal for these types of solutions, while areas with low permeability may require alternative strategies like detention basins or above-ground storage.
Slope and Gradient Evaluation
The topography of a site can significantly impact the flow of surface water and the effectiveness of drainage systems. Steep slopes, for example, can lead to rapid runoff and increased erosion risk, necessitating the use of swales, check dams, or terraced landscaping to slow the water’s movement. Conversely, flat or gently sloping areas may be better suited for detention basins or infiltration trenches.
Organic Matter Incorporation
Amending the soil with organic matter, such as compost or peat, can greatly improve its water-holding capacity and ability to support vegetation growth. This, in turn, enhances the soil’s infiltration rate and the performance of bioretention systems and green roofs – two popular SuDS techniques that leverage the natural water-filtering and storage capabilities of plants and soil.
Vegetation Selection
The choice of plants and vegetation within a sustainable landscaping design can have a significant impact on the overall drainage performance, as well as the project’s environmental and aesthetic benefits.
Native Plant Integration
Incorporating native plant species into the landscape design not only supports local biodiversity but also ensures the vegetation is well-adapted to the site’s soil and climate conditions. These plants often have deeper root systems and higher drought tolerance, making them more resilient and effective at stabilizing soil, slowing runoff, and promoting infiltration.
Drought-Tolerant Species
In the face of climate change and increasingly unpredictable weather patterns, selecting drought-tolerant plant species is crucial for the long-term success of sustainable landscaping projects. These plants require less irrigation, reducing the demand on potable water supplies and helping to maintain healthy vegetation even during periods of low rainfall.
Erosion Control Benefits
Many native and drought-tolerant plant species have extensive root systems that help to bind soil particles together, improving the landscape’s resistance to erosion. This is particularly important in areas with steeper slopes or where surface water flow is concentrated, as it reduces the risk of sediment buildup in drainage infrastructure and nearby waterbodies.
Rainwater Harvesting Systems
Integrating rainwater harvesting systems into sustainable landscaping designs can provide significant water conservation benefits and further reduce the burden on traditional drainage networks.
Catchment Area Calculations
The first step in designing an effective rainwater harvesting system is to accurately determine the catchment area – the surface area from which rainwater will be collected. This could include rooftops, paved areas, or even landscaped surfaces, and the calculations should account for the site’s specific layout and topography.
Storage Tank Sizing
Based on the catchment area and local rainfall patterns, we can then determine the optimal storage tank size to meet the property’s water demands, whether for landscape irrigation, toilet flushing, or other non-potable uses. Careful sizing ensures the system can effectively capture and store rainfall during wet periods while avoiding unnecessary overflow during drier months.
Distribution Network Design
The final component of a rainwater harvesting system is the distribution network – the plumbing and irrigation infrastructure that transports the collected water to where it’s needed. This includes the placement of downspouts, underground piping, and above-ground sprinklers or drip irrigation systems, all of which might want to be designed to maximize efficiency and user-friendliness.
By incorporating these sustainable landscaping techniques into residential, commercial, and industrial projects, we can significantly improve surface water drainage and attenuation, while also providing a range of environmental, economic, and aesthetic benefits. For more information or to discuss your specific drainage requirements, please don’t hesitate to contact the team at Plumbing Drains North Wales.
