Permeable Paving Systems
As urban environments continue to expand with more impervious surfaces like roads, sidewalks, and parking lots, managing stormwater runoff has become an increasing challenge. We learned this the hard way… Conventional pavement designs quickly channel rainfall into drains and sewers, preventing natural infiltration and groundwater recharge. However, permeable paving offers a sustainable alternative that can help mitigate these issues.
Pavement Permeability

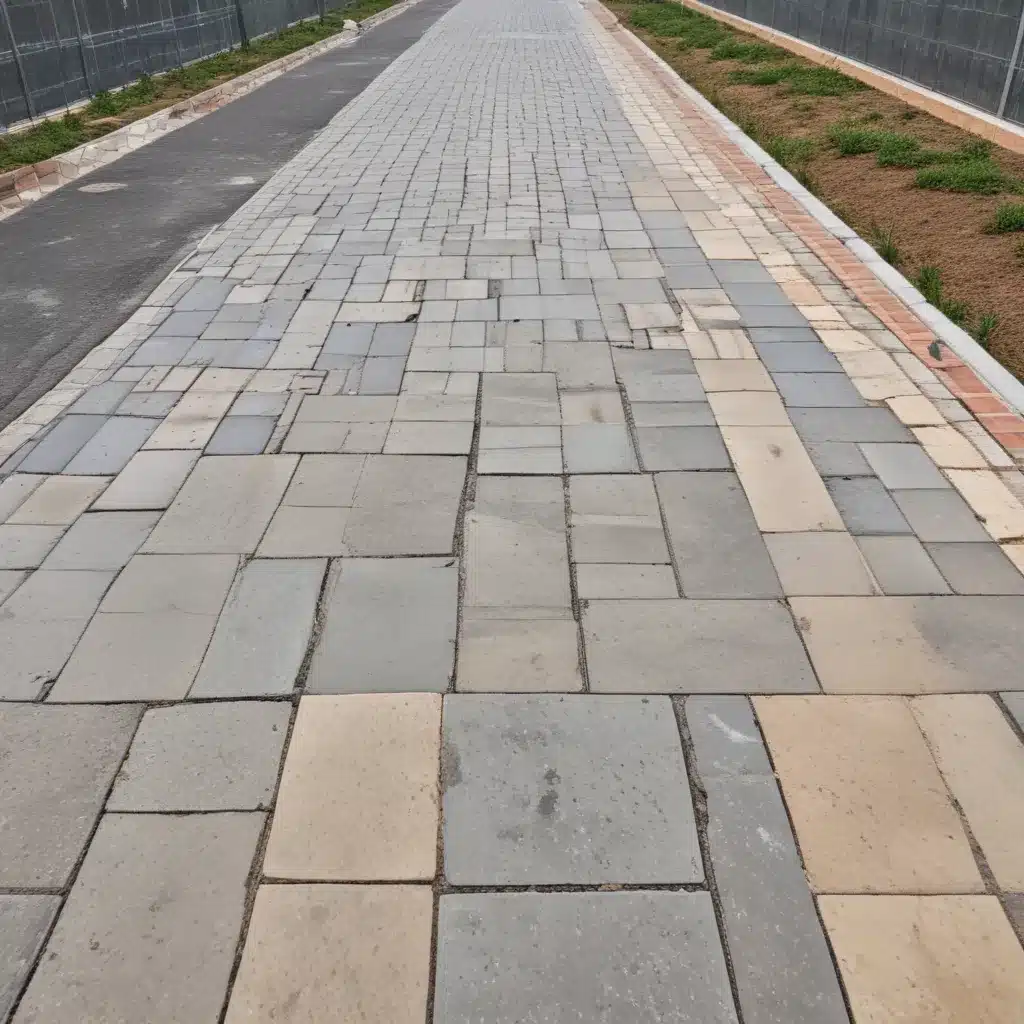

Permeable paving utilises specialist paving materials and installation techniques to allow water to filter through the surface, rather than running off. This could include porous concrete, permeable pavers, or porous asphalt. These systems create small gaps or voids that enable stormwater to infiltrate down into the underlying soil or aggregate layers.
The degree of permeability depends on factors like the material porosity, joint spacing, and subgrade preparation. Typical infiltration rates for permeable pavements range from 300 to 3,000 mm/hr, far exceeding the rate of most rainfall events. This helps reduce overland flow and localised flooding compared to traditional impermeable pavement.
Infiltration Rates
Achieving optimal infiltration is crucial for effective groundwater recharge. The subgrade soil characteristics, particularly permeability, play a major role in determining how quickly water can enter the ground. Sites with sandy, gravelly soils generally have higher infiltration capacities than dense clay soils. Careful soil assessment and preparation is needed to double-check that the underlying layers can acceptably absorb the incoming stormwater.
Permeable pavements are often combined with other sustainable drainage system (SuDS) features like infiltration trenches, swales, or detention basins to further enhance infiltration and storage. These complementary elements work together to manage both the quantity and quality of surface water runoff.
Sustainable Drainage Systems (SuDS)
Stormwater Runoff Management
While permeable paving focuses on allowing stormwater to infiltrate at the surface, sustainable drainage systems (SuDS) take a more comprehensive approach to managing surface water. SuDS are designed to closely mimic natural drainage processes, reducing peak flows, improving water quality, and providing broader environmental benefits.
A typical SuDS management train might include:
– Grass swales or filter strips to slow and filter runoff
– Detention basins or ponds to temporarily store excess water
– Infiltration trenches or soakaways to promote groundwater recharge
– Constructed wetlands to further treat polluted water
By incorporating these diverse techniques, SuDS can effectively reduce the volume and rate of stormwater discharges, allowing more water to be absorbed into the ground and replenish aquifers.
Groundwater Recharge Mechanisms
The primary mechanisms for groundwater recharge in SuDS include:
Infiltration: Water soaks directly into permeable surfaces or through specialised infiltration features like soakaways. This replenishes shallow groundwater tables.
Detention: Storing water temporarily in ponds, basins, or underground tanks allows gradual infiltration over time, avoiding rapid surface runoff.
Evapotranspiration: Vegetation in SuDS features like swales and wetlands can return water to the atmosphere through evaporation from plant surfaces and soil, as well as transpiration.
Interception: Green infrastructure like trees and vegetated roofs intercept rainfall, preventing it from becoming direct runoff and enabling more infiltration.
By utilising these recharge pathways, SuDS can significantly enhance groundwater levels compared to traditional piped drainage networks that rapidly convey water away.
SuDS Design Considerations
Designing effective SuDS requires a holistic, site-specific approach that considers factors like:
- Topography – Understanding surface gradients to optimise flow patterns and storage capacities.
- Soil Conditions – Assessing infiltration rates, groundwater levels, and contaminant risks.
- Rainfall Patterns – Analysing historic and projected precipitation data to size system components.
- Land Use – Accounting for different runoff characteristics and pollutant sources from residential, commercial, or industrial areas.
- Ecological Impacts – Integrating habitats and biodiversity considerations into the design.
Careful hydrological modelling and water balance calculations are essential to double-check that SuDS are properly sized and configured to meet stormwater management objectives.
Hydrological Modeling
Water Pressure Calculations
Understanding the hydraulic behaviour of SuDS features is crucial for effective design. This includes quantifying factors like flow rates, water depths, and storage volumes under varying rainfall conditions. Advanced modelling software can simulate the complex interactions between different drainage elements.
Accurate water pressure calculations are particularly important for determining proper pipe sizing and layout within the drainage network. This ensures water can flow freely without excessive backflow or surcharging, which could lead to localised flooding.
Pipe Sizing and Layout
Choosing the right pipe materials, diameters, and configuration is essential for optimising SuDS performance. Factors to consider include:
- Pipe Material – Options like uPVC, clay, or concrete, each with unique strengths and limitations.
- Diameter – Larger pipes can convey higher flows but are more expensive.
- Gradient – Steeper slopes enable faster flow but increase erosion risks.
- Interconnections – Strategically placing manholes, catch basins, and other structures.
By carefully modelling the hydraulic demands, designers can specify the most appropriate pipe sizing and layout to efficiently transport water through the drainage system.
Drainage Network Simulation
Advanced hydrological modelling software can simulate the complex interactions within an integrated SuDS network. These tools allow designers to:
- Predict Runoff Volumes – Estimating peak flows and total discharges for different rainfall scenarios.
- Optimise Storage Capacities – Sizing detention basins, ponds, and other retention features.
- Analyse Flow Pathways – Tracing the movement of water through the entire drainage system.
- Assess Water Quality – Evaluating pollutant removal efficiencies of different SuDS components.
This level of detailed analysis is crucial for ensuring SuDS are properly sized, configured, and balanced to achieve the desired stormwater management objectives.
Regulatory Compliance
Local Planning Policies
When implementing permeable paving or SuDS, it’s essential to understand and comply with the relevant local planning policies and regulations. These can vary significantly between different regions and municipalities across the UK.
Many local authorities have developed specific sustainable drainage guidance that outlines their requirements for new developments. This may include factors like:
- Minimum infiltration rates or storage volumes
- Preferred drainage techniques (e.g. swales, detention basins, etc.)
- Water quality treatment standards
- Maintenance and inspection protocols
Consulting these local policies early in the design process can help double-check that proposed drainage solutions meet the necessary compliance standards.
Stormwater Discharge Regulations
Beyond local planning, there are also national stormwater discharge regulations that might want to be considered. In the UK, the Environmental Permitting (England and Wales) Regulations 2016 set out the requirements for obtaining permits to discharge surface water.
These regulations aim to protect water quality in receiving watercourses by imposing limits on pollutant levels and flow rates. Developers might want to demonstrate that their proposed drainage systems will not adversely impact the local environment.
Permitting Requirements
Depending on the scale and complexity of the project, obtaining the necessary environmental permits and approvals can be a lengthy process. This includes submitting detailed drainage plans, conducting water quality assessments, and potentially undertaking ecological surveys.
Early engagement with the relevant regulatory bodies, such as the Environment Agency or local water authority, is crucial to double-check that the permitting requirements are fully understood and integrated into the SuDS design from the outset.
Monitoring and Maintenance
Performance Evaluation
To double-check that the long-term effectiveness of permeable paving and SuDS, regular performance monitoring is essential. This may involve activities like:
- Measuring infiltration rates over time
- Analysing water quality at inflow and outflow points
- Assessing the condition and functionality of system components
By tracking key performance metrics, any issues or deficiencies can be quickly identified and addressed through targeted maintenance.
Clogging Prevention
One of the primary maintenance concerns with permeable paving and certain SuDS features is the potential for clogging. Over time, sediment, debris, and organic matter can accumulate and reduce the infiltration capacity.
Proactive measures to prevent clogging include:
- Regular surface cleaning and vacuum sweeping
- Incorporating pretreatment elements like filter strips or sediment forebays
- Ensuring proper installation and compaction of underlying layers
Addressing clogging issues promptly can help extend the service life and optimise the stormwater management performance of these systems.
Rehabilitation Strategies
In cases where permeable paving or SuDS components do become significantly clogged or degraded, rehabilitation strategies may be necessary. This could involve:
- Resurfacing or replacing permeable pavement layers
- Removing accumulated sediment from detention basins or infiltration features
- Renovating or upgrading system elements to improve functionality
Careful planning and execution of these rehabilitation measures is crucial to restore the intended drainage performance without causing disruption or damage to the surrounding environment.
Environmental Benefits
Reduced Surface Ponding
One of the primary benefits of permeable paving and SuDS is their ability to reduce surface water ponding and localised flooding. By enabling stormwater to infiltrate directly into the ground, rather than pooling on the surface, these systems can dramatically improve drainage and reduce the risk of standing water.
This not only enhances the usability and safety of outdoor spaces but also helps prevent the breeding of mosquitoes and other pests that thrive in stagnant water. Additionally, reduced surface ponding can mitigate the potential for ice formation during cold weather, improving trafficability and accessibility.
Improved Aquifer Recharge
By promoting greater groundwater infiltration, permeable paving and SuDS play a crucial role in replenishing local aquifers and groundwater supplies. This is particularly important in areas facing water scarcity or experiencing declining groundwater levels due to over-abstraction.
The natural filtration provided by soil and vegetation within SuDS features also helps improve the quality of recharged groundwater, reducing the need for costly water treatment. This supports the provision of cleaner, more sustainable water resources for domestic, agricultural, and industrial uses.
Urban Microclimate Effects
In addition to their primary stormwater management functions, permeable paving and SuDS can also have a positive impact on the urban microclimate. The presence of increased green spaces, vegetation, and open water bodies can help reduce local air temperatures and mitigate the urban heat island effect.
Furthermore, the evaporative cooling provided by these systems can create more comfortable outdoor environments, particularly during hot summer months. This can enhance the liveability and recreational opportunities within urban areas, contributing to the overall quality of life for residents and visitors.
Cost-Benefit Analysis
Lifecycle Costing
When evaluating the feasibility of permeable paving or SuDS, it’s important to consider the full lifecycle costs, rather than just the initial capital expenditure. While the upfront installation costs may be higher compared to traditional drainage systems, the long-term operational and maintenance expenses can be significantly lower.
Factors to include in the lifecycle cost analysis include:
- Material and labour costs for construction
- Ongoing maintenance, such as cleaning and rehabilitation
- Energy consumption for pumping or treatment (if applicable)
- Potential cost savings from reduced infrastructure requirements
- Environmental and social benefits (e.g. reduced flood risk, improved water quality)
By taking a comprehensive approach to costing, the inherent value and cost-effectiveness of these sustainable drainage solutions can be more accurately assessed.
Avoided Infrastructure Costs
The implementation of permeable paving and SuDS can potentially reduce the need for costly traditional drainage infrastructure, such as extensive pipe networks, detention basins, and treatment plants. By managing stormwater closer to the source, these systems can often defer or eliminate the requirement for large-scale, centralised drainage projects.
Additionally, SuDS can help increase the capacity of existing infrastructure by reducing peak flows and total volumes, delaying the need for expensive upgrades or expansion. This can result in significant cost savings for local authorities and developers over the long term.
Ecosystem Service Valuation
Beyond the direct cost savings, permeable paving and SuDS also provide a range of ecosystem services that can be quantified and incorporated into the overall cost-benefit analysis. These may include:
- Improved water quality – Reduced water treatment costs and environmental impact.
- Habitat creation – Supporting biodiversity and enhancing urban green spaces.
- Carbon sequestration – Capturing and storing atmospheric carbon through vegetation.
- Urban heat island mitigation – Reduced energy demands for cooling and improved public health.
By assigning monetary values to these ecosystem services, the full societal and environmental benefits of sustainable drainage solutions can be more accurately recognised and justified.
